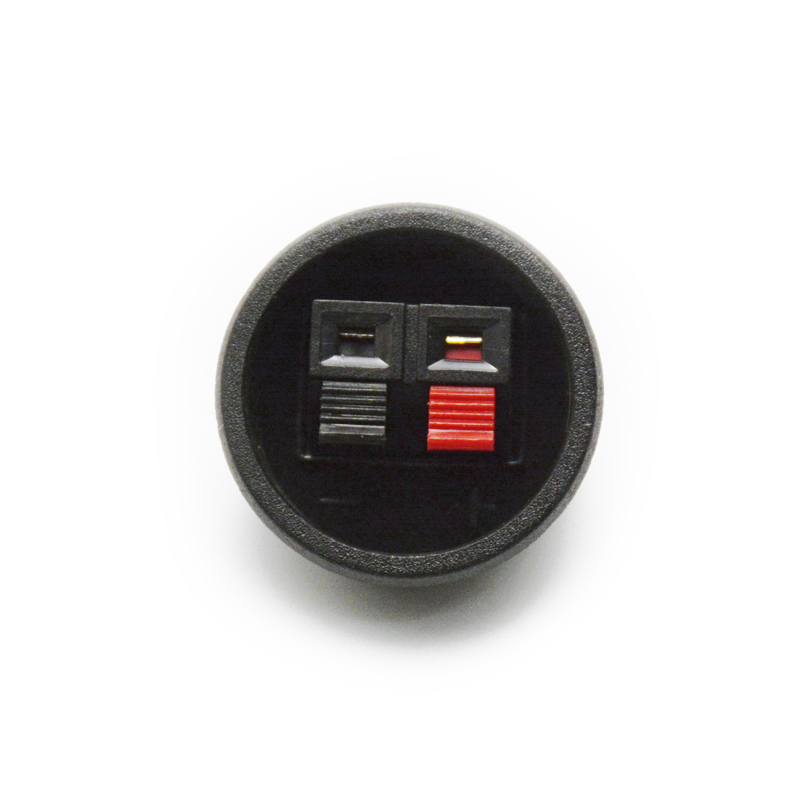

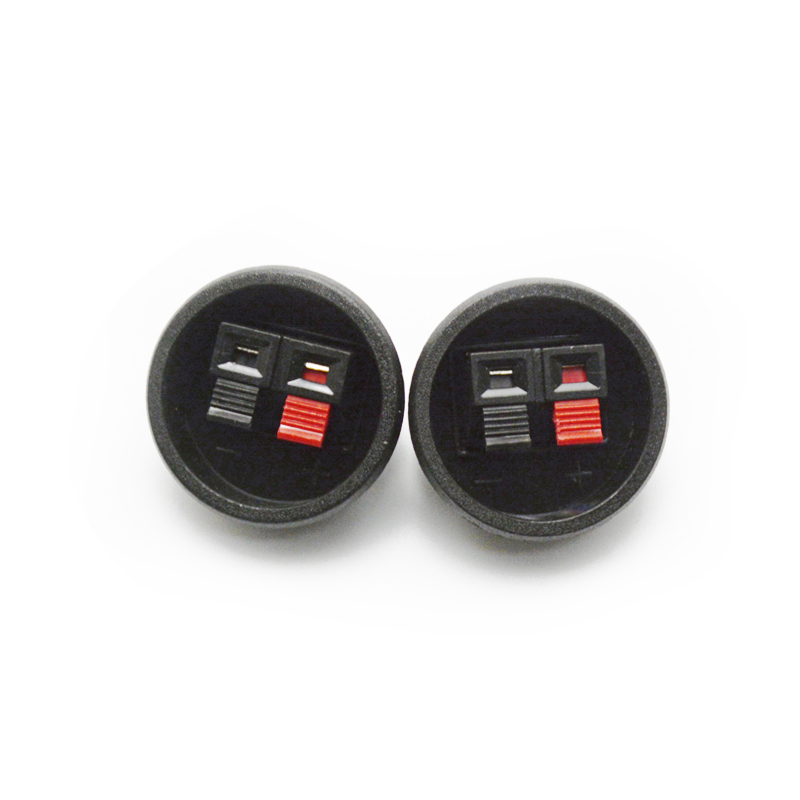

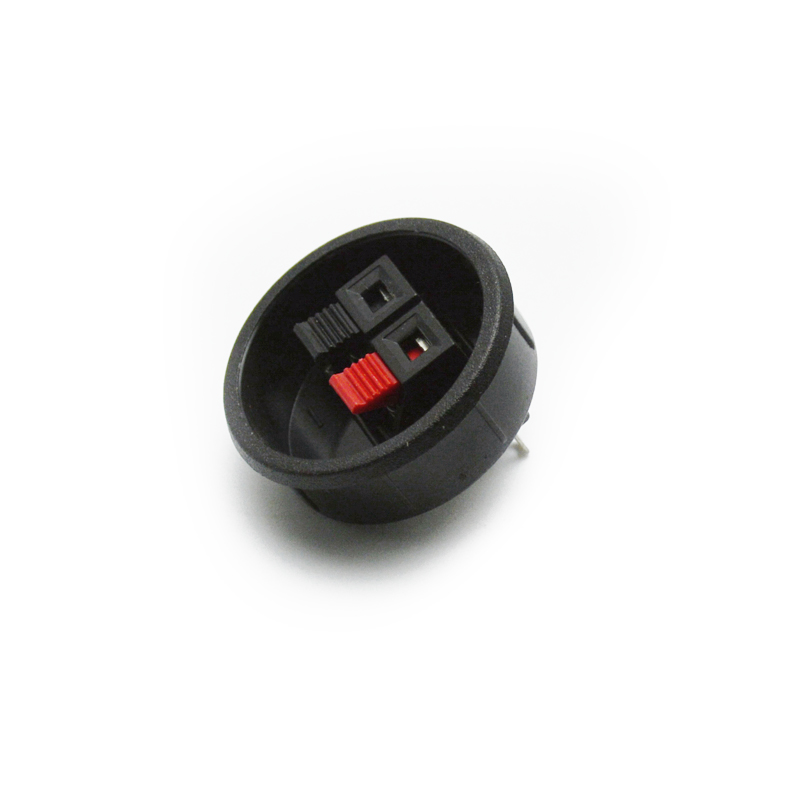

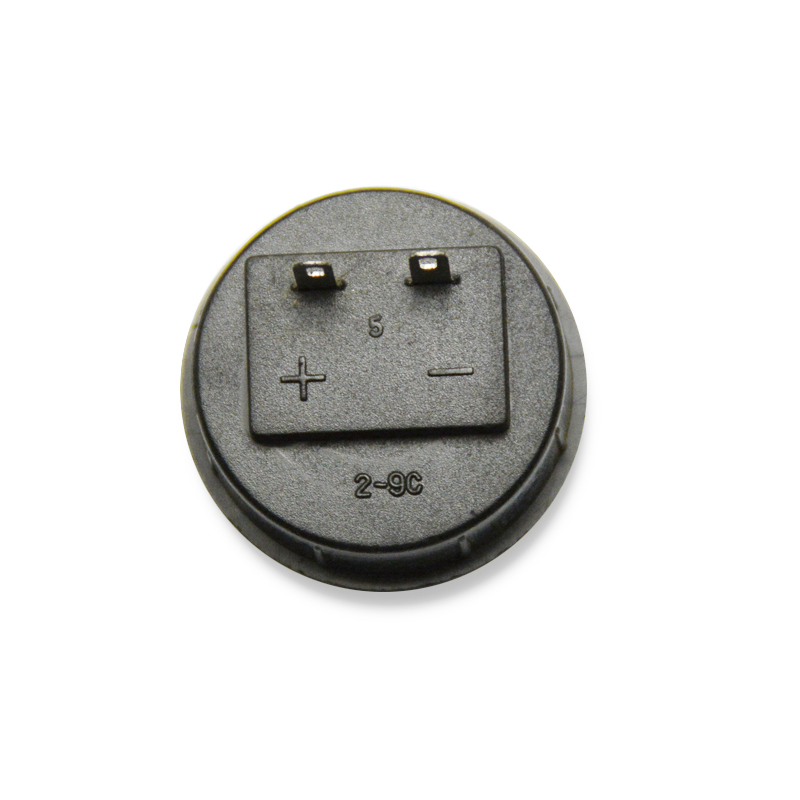

Speaker terminal box, usually installed on the back of the speaker shell for power amplifier and horn connection box.

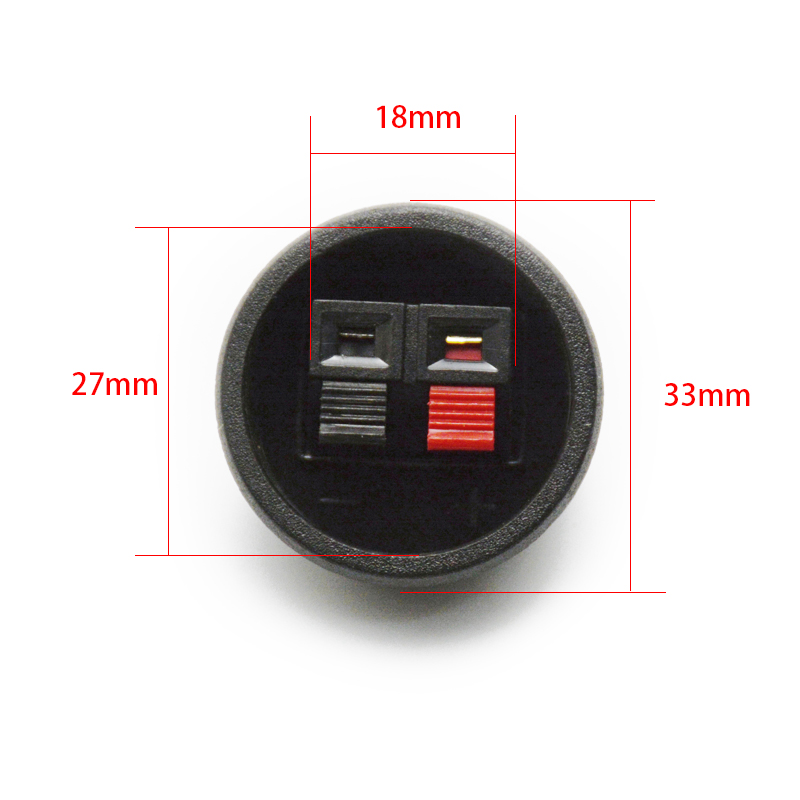

Product size :
See Pictures Below
Product color :
Black with red
Product material :
audio and video
Rated voltage/current: DC 100V 1.5A/DC 100V 3A
Contact resistance: <0.03
Insulation Resistance: > 100M DC500V
Voltage withstand: AC 500V (50Hz)/min
Line retention: 1Kgf
Applicable Wire: AWG#24-#16
Life: 5000 times
[Performance/Characteristics]:This product is often used in high-end speaker wiring clamp, double door test clamp of electronic engineering technology, LED lamp test wiring seat, aging line test clamp and other places.
